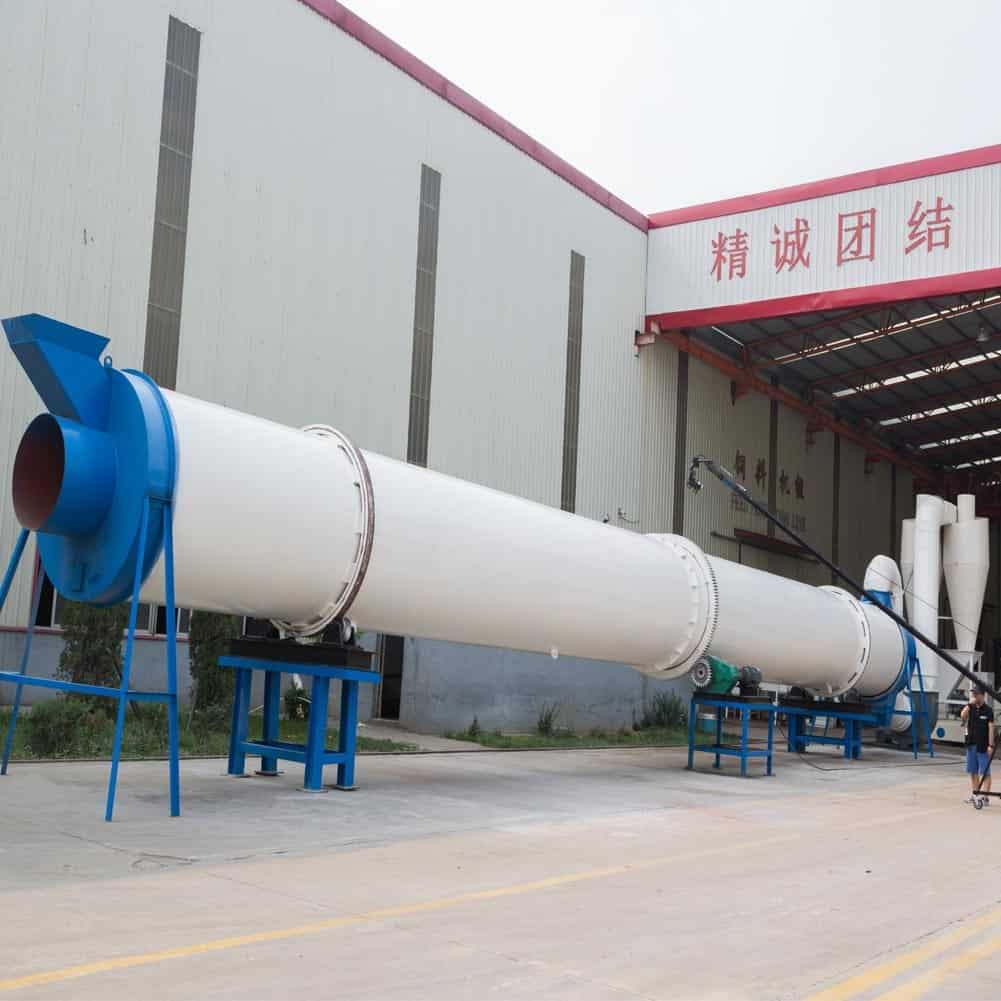

Biomass sawdust rotary dryer

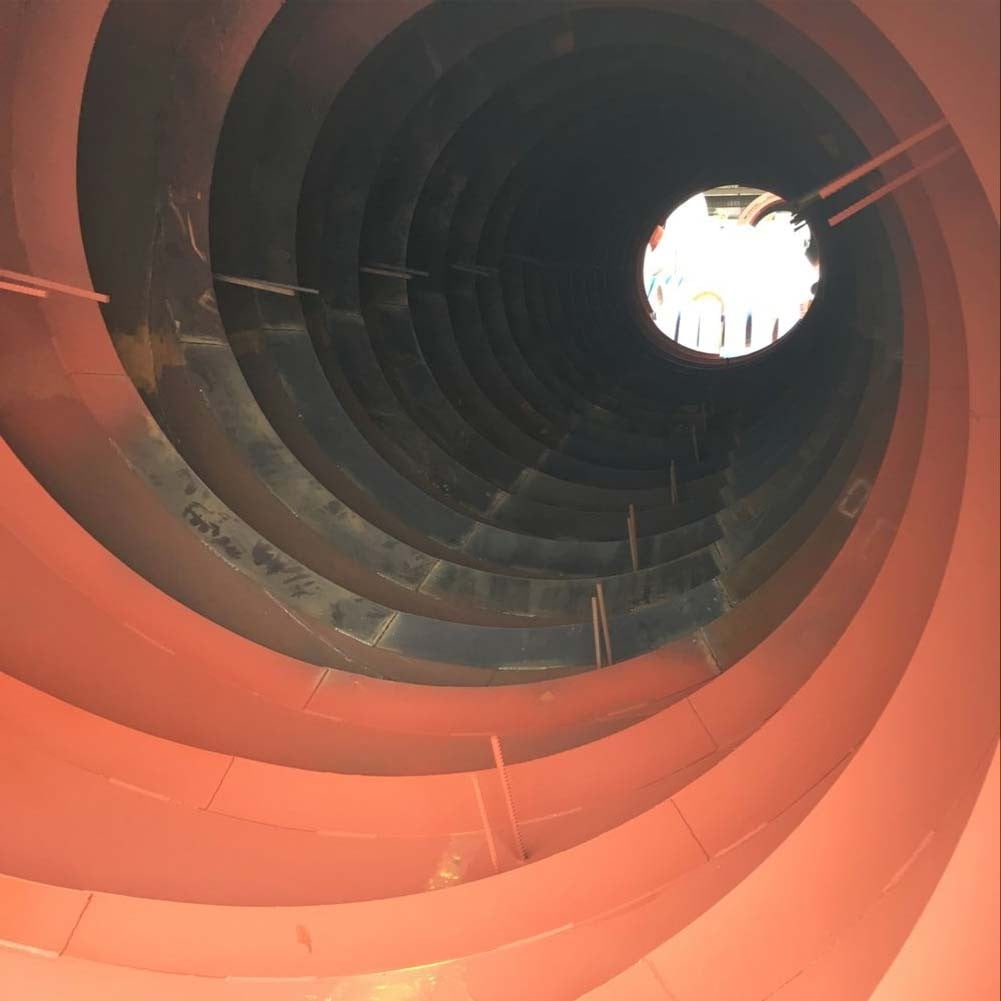

Spiral plate weld design, accord with welding rule, it won’t easily crack and deform.

Q235 carbon steel material; total weight: 10 t-30 t

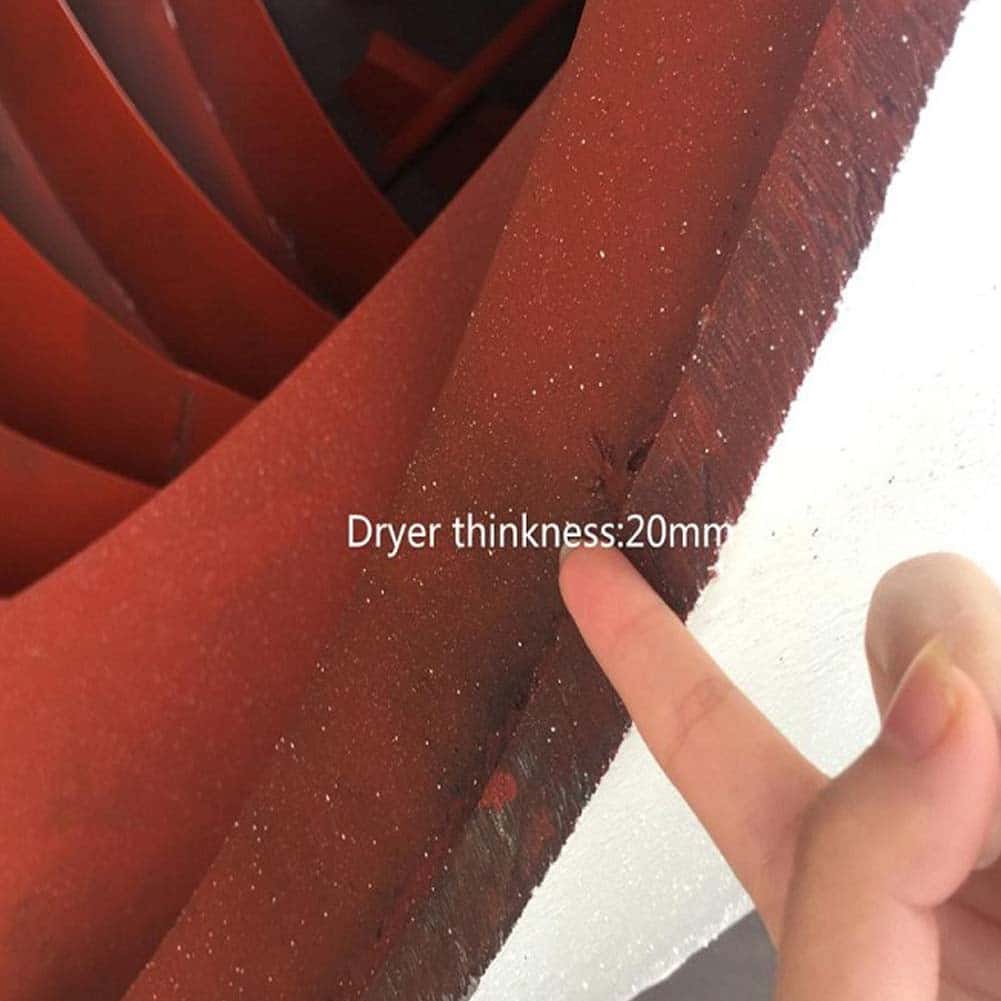

Thickness of cylinder: 18-20 mm ensure long using life of rotary dryer

Different angles for plate designed according to different raw materials.


Parameter

Model(m)Power(kw)

Evaporation Capacity(t/h)

YGHGφ1.2*12*15.5+15+2.2+1.50.3-0.6
YGHGφ1.5*12*111+18.5+3+2.20.47-0.91
YGHGφ1.5*18*111+30+3+2.20.7-1.34
YGHGφ1.8*18*118.5+37+3+2.21-1.9
YGHGφ1.8*24*118.5+55+3+2.21.35-2.44
YGHGφ2.0*24*118.5+75+5.5+2.21.67-2.9
YGHGφ2.2*24*122+90+5.5+2.22.02-3.36
YGHGφ2.5*24*122+90+5.5+32.61-4.16
YGHGφ1.8*10*32.2*4+37+3+3+2.20.8-1.4
YGHGφ2.2*10*33*4+55+5.5+5.5+31.2-2.2
YGHGφ2.5*10*35.5*4+75+5.5+5.5+32-3
YGHGφ3.0*10*35.5*4+90+5.5+5.5+32.8-4


Raw Material

Factory supplier high efficient new design biomass wood sawdust rotary dryer(图1)Factory supplier high efficient new design biomass wood sawdust rotary dryer(图2)Factory supplier high efficient new design biomass wood sawdust rotary dryer(图3)Factory supplier high efficient new design biomass wood sawdust rotary dryer(图4)Factory supplier high efficient new design biomass wood sawdust rotary dryer(图5)
           Sawdust       Wood Chips           Shavings              Straw          EFB Fiber


1.Design of rotary dryer: spiral plate weld design, accord with welding rule, rotary dryer won’t easily crack and deform.

2.Different angles for plate designed according to different raw materials. Reasonable design ensure good effect.

Factory supplier high efficient new design biomass wood sawdust rotary dryer(图6)Factory supplier high efficient new design biomass wood sawdust rotary dryer(图7)


3.Thickness of wood chips dryer: 18-20 mm ensure long using life.

4.Strong bearing base of biomass dryer ensure that dryer can run steadily

Factory supplier high efficient new design biomass wood sawdust rotary dryer(图8)Factory supplier high efficient new design biomass wood sawdust rotary dryer(图9)


5. The stove of sawdust dryer consists of 3 sectors of fire-proof wall, and every fire-proof wall contains 2 layer bricks. this design of rotary dryer can avoid open flame. so rotary dryer can run steadily, safely with long life.

Factory supplier high efficient new design biomass wood sawdust rotary dryer(图10)Factory supplier high efficient new design biomass wood sawdust rotary dryer(图11)

6. Fan Blower of sawdust rotary drum dryer

  1. the model is large, the effect of induced air is better. the waste won’t pile inside air pipe easily; it runs safely.

  2. belt pulley air blower, so it can run safely and steadily.
